NIC Type

ARCnet

Transfer Rate

2.5Mbps

Data Bus

8-bit ISA

Topology

Linear Bus

Wiring Type

200 m fiber optic cable

Boot ROM

Available

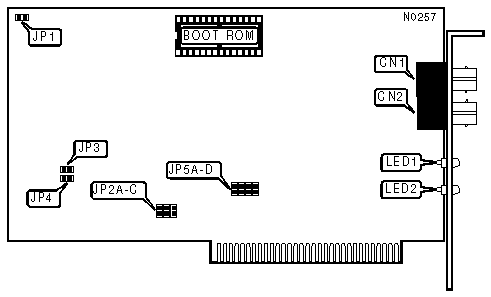

CONNECTIONS

Purpose

Location

SMA 905 Receive Connector (gray)

CN1

SMA 905 Transmit Connector (black)

CN2

CONFIGURATION MEMORY CLEAR

Setting

JP1

»

Normal operation

Open

Clear memory of all addresses and settings

Closed

INTERRUPT REQUEST

IRQ

JP2A

JP2B

JP2C

»

5

Closed

Open

Open

6

Open

Closed

Open

7

Open

Open

Closed

TIMEOUT CONFIGURATION

Response Time

Reconfiguration Time

JP3

JP4

»

74.7µs

840µs

Open

Open

283.4µs

1680µs

Open

Closed

561.8µs

1680µs

Closed

Open

1118.6µs

1680µs

Closed

Closed

CARDS INSTALLED

Card number

JP5A

JP5B

JP5C

JP5D

»

1

Open

Open

Open

Closed

2

Open

Open

Closed

Open

3

Open

Closed

Open

Open

4

Closed

Open

Open

Open

Note:If there is only one NIC installed in a system, set this option to the "1" position. If this NIC is the second card to be installed in the system, set this option to the "2" position, and so on.

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Red

On/Blinking

I/O bus activity detected

LED1

Red

Off

No I/O bus activity detected

LED2

Green

On

Network activity detected

LED2

Green

Off

No network activity detected or bad connection

MISCELLANEOUS NOTES

Software that is supplied with the card must be run in order to fully configure the card.
