Card Type	Network Interface Card
NIC Type	Ethernet, Token Ring
Maximum Onboard Memory	1MB
Boot ROM	Not available
Network Transfer Rate	155Mbps
Topology	Star, Ring
Wiring Type	Fiber optic cable
Data Bus	64-bit PCI

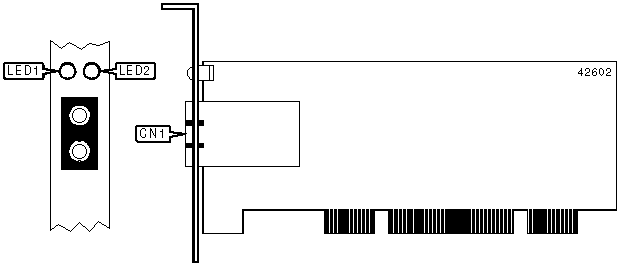

CONNECTIONS
Function	Label
Fiber optic connector (SC)	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is not good
LED2	Yellow	On	Signal has been lost
LED2	Yellow	Off	Signal is detected
