Card Type	Network Interface Card
NIC Type	Token Ring
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	4/16Mbps
Topology	Star, Ring
Wiring Type	Shielded twisted pair Unshielded twisted pair
Data Bus	EISA

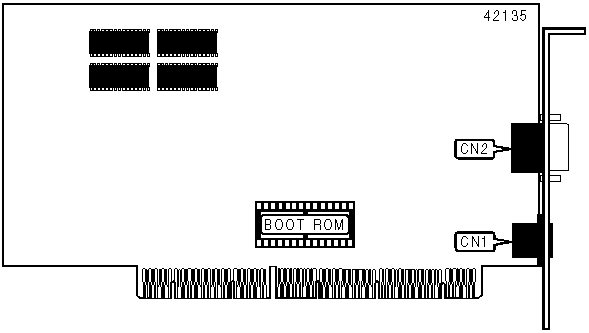

CONNECTIONS
Function	Label	Function	Label
UTP via RJ-45 connector	CN1	STP via 9-pin connector	CN2
