Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	4Kb
Boot ROM	Available
Network Transfer Rate	10/100Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	32-bit PCI

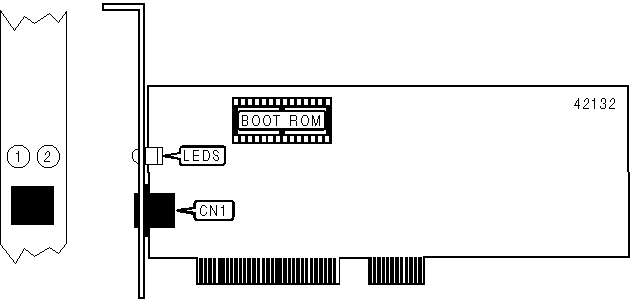

CONNECTIONS
Function	Label
UTP via RJ-45 connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Data is being received
LED1	Yellow	Off	Data is not being received
LED2	Lt Green	On	Data is being transmitted/received at 100Mbps
LED2	Lt Green	Off	Data is being transmitted/received at 10Mbps
