NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear Bus
Wiring Type	AUI transceiver via DB-15 port
Boot ROM	Available

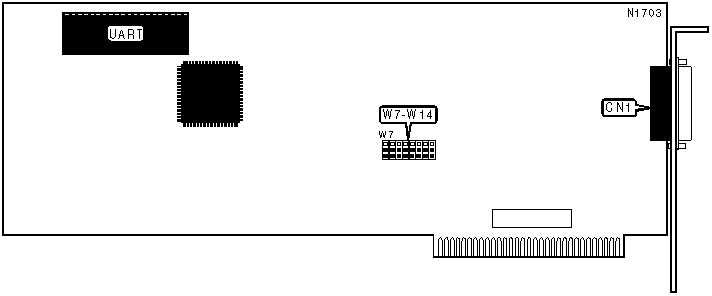

CONNECTIONS
Function	Label
AUI transceiver via DB-15 port	CN1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	IRQ3 enabled	W7	Pins 2 & 3 closed
	IRQ3 disabled	W7	Pins 1 & 2 closed

DMA CHANNEL SELECTION
DMA		W8	W14
»	3	Pins 2 & 3 closed	Pins 1 & 2 closed
	1	Pins 1 & 2 closed	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed	Pins 2 & 3 closed

BASE I/O ADDRESS SELECTION
Setting		W9	W10	W11	W12	W13
	200h	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2
	220h	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
	240h	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
	260h	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2
	280h	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2
	2A0h	1 & 2	2 & 3	1 & 2	2 & 3	1 & 2
	2C0h	2 & 3	1 & 2	1 & 2	2 & 3	1 & 2
	2E0h	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2
»	300h	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
	320h	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
	340h	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
	360h	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
	380h	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2
	3A0h	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2
	3C0h	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2
	3E0h	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
Note: The pins designated should be in the closed position.
