Card Type	Network Interface Card
NIC Type	Ethernet
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair
Data Bus	PCMCIA Type II, PCMCIA Type III

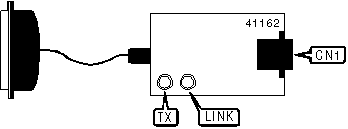

CONNECTIONS
Function	Label
Unshielded twisted pair	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LINK	Unidentified	On	UTP link is good
LINK	Unidentified	Off	UTP link is broken
TX	Unidentified	Blinking	Data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
