NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

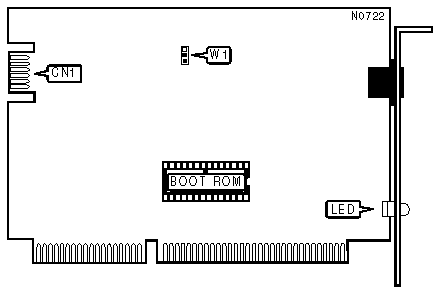

BOOT ROM
Setting		W1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

DIAGNOSTIC LED
Color	Status	Condition
Green	On	Network connection is good
Green	Off	Network connection is broken

MISCELLANEOUS TECHNICAL NOTE

Note:CN1 is used by the manufacturer for testing purposes and should not be used.
