S-NET NIC (WITH STATIC PROTECTION)

MICRODYNE CORPORATION

NIC Type

S-Net

Transfer Rate

300/600Kbps

Data Bus

8-bit ISA

Topology

Star

Wiring Type

Belden 9184

Belden 9302

DSCC EDC4

IBM Type 1

Boot ROM

Available

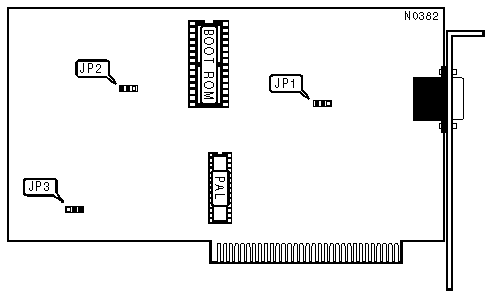

OPERATION MODE

Setting

JP1

»
Interrupt mode

Pins 2 & 3 closed

Polled mode

Pins 1 & 2 closed

Note:This option controls the interface between the CPU and the UART on the card. Polled mode should only be used in IBM 3270 PCs.

NETWORK SPEED

Speed

JP2

»
600Kbps

Pins 1 & 2 closed

300Kbps

Pins 2 & 3 closed

Note:The LAN speed must match that of the 68B server.

CLOCK SELECT

Clock

JP3

»
System oscillator

Pins 1 & 2 closed

System clock

Pins 2 & 3 closed

Note:If the card is installed in a 4.77Mhz PC either setting can be used. If the card is installed in an AT or compatible, or a Turbo PC the system oscillator setting must be used (Pins 1 & 2 closed).

MISCELLANEOUS NOTES

This card comes in two versions. One version addresses the boot ROM at D0000h while the other uses address C0000h for the boot ROM.

NIC Type	S-Net
Transfer Rate	300/600Kbps
Data Bus	8-bit ISA
Topology	Star
Wiring Type	Belden 9184 Belden 9302 DSCC EDC4 IBM Type 1
Boot ROM	Available

OPERATION MODE
Setting		JP1
»	Interrupt mode	Pins 2 & 3 closed
	Polled mode	Pins 1 & 2 closed
Note:This option controls the interface between the CPU and the UART on the card. Polled mode should only be used in IBM 3270 PCs.

NETWORK SPEED
Speed		JP2
»	600Kbps	Pins 1 & 2 closed
	300Kbps	Pins 2 & 3 closed
Note:The LAN speed must match that of the 68B server.

CLOCK SELECT
Clock		JP3
»	System oscillator	Pins 1 & 2 closed
	System clock	Pins 2 & 3 closed
Note:If the card is installed in a 4.77Mhz PC either setting can be used. If the card is installed in an AT or compatible, or a Turbo PC the system oscillator setting must be used (Pins 1 & 2 closed).
