MADGE NETWORKS, LTD.

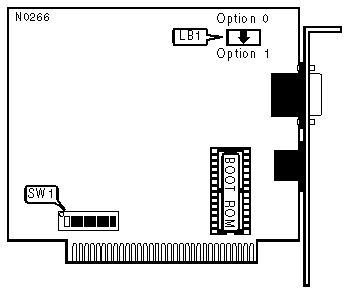

Smart 16/4 PC Ringnode
|
NIC Type |
Token-Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Unshielded twisted pair Shielded twisted pair |
|
Boot ROM |
Available |
|
I/O BASE ADDRESS AND BOOT ROM ADDRESS | ||||
|
I/O Address |
Boot ROM Address |
SW1/1 |
SW1/2 | |
| » |
0A20-0A2Fh |
CC000-CDFFFh |
On |
On |
|
1A20-1A2Fh |
DC000-DDFFFh |
Off |
On | |
|
2A20-2A2Fh |
CE000-CFFFFh |
On |
Off | |
|
3A20-3A2Fh |
DE000-DFFFFh |
Off |
Off | |
|
BOOT ROM | ||
|
Setting |
SW1/3 | |
| » |
Disabled |
Off |
|
Enabled |
On | |
|
INTERRUPT REQUEST | |||||
|
IRQ |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 | |
|
2 |
Off |
Off |
Off |
On | |
|
3 |
Off |
Off |
On |
Off | |
| » |
5 |
Off |
On |
Off |
Off |
|
7 |
On |
Off |
Off |
Off | |
|
NETWORK SEGMENT SPEED | ||
|
Setting |
SW1/8 | |
| » |
4Mbps |
On |
|
16Mbps |
Off | |
|
Note:All cards on the network segment must have this option set the same. | ||
|
CABLE TYPE | |
|
Type |
LB1 Orientation |
|
Unshielded twisted pair (RJ-45 jack) |
Option 0 |
|
Shielded twisted pair (DB-9 connector) |
Option 1 |
|
Note:Ensure that the header block completely covers all pins on the base. | |
