Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Star bus
Wiring Type	Unshielded twisted pair
Data Bus	32-bit PCI

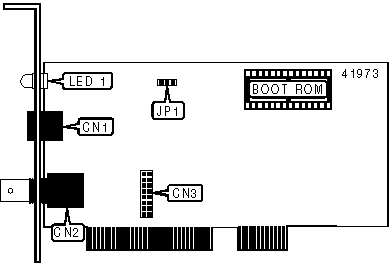

CONNECTIONS
Function	Label	Function	Label
UTP connector	CN1	AUI connector	CN3
RG-58A/U	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
AUI connector enable	JP1	Pin 2-3

DIAGNOSTIC LED(S)

Note: Function of LED 1 is unidentified.
