NIC Type	ATM (OC-3c)
Boot ROM	Not available
Network Transfer Rate	155Mbps
Topology	Star
Wire Type	Fiber optic cable
Data Bus	GIO32/GIO32bis

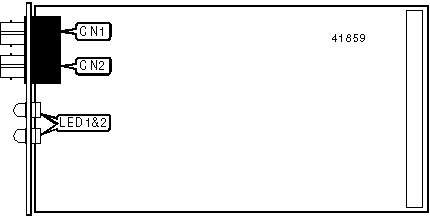

CONNECTIONS
Function	Label	Function	Label
Fiber optic SC cable connector	CN1	Fiber optic SC cable connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is broken
LED2	Yellow	On	Power is on
LED2	Yellow	Blinking	Driver is running
LED2	Yellow	Off	Power is off or card failed power-up self-test
Note:The information of which LED is LED1 and which is LED2 is unidentified.
