NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	PCI
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Not available

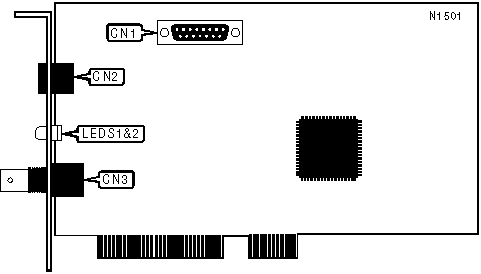

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15 port	CN1	RG-58A/U 50ohm coaxial port	CN3
Unshielded twisted pair port	CN2

DIAGNOSTIC LED(S)

Note: The purpose of LED1 and LED2 are unidentified.
