NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus

Wiring Type

RG-58A/U 50ohm coaxial

Boot ROM

Available

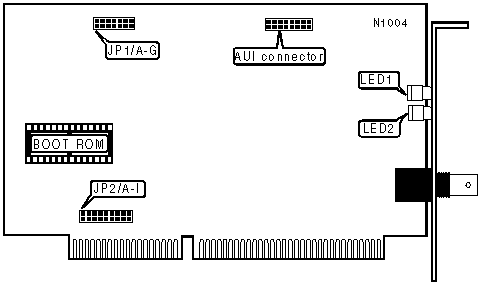

BASE I/O ADDRESS SELECTION

Address

JP1/A

JP1/B

JP1/C

»

300h

Open

Open

Open

200h

Open

Open

Closed

220h

Closed

Open

Closed

240h

Open

Closed

Closed

260h

Closed

Closed

Closed

320h

Closed

Open

Open

340h

Open

Closed

Open

360h

Closed

Closed

Open

INTERRUPT SELECTION

IRQ

JP2/A

JP2/B

JP2/C

JP2/D

JP2/E

JP2/F

JP2/G

JP2/H

»

3

Open

Open

Open

Open

Open

Open

Closed

Open

2

Open

Open

Open

Open

Open

Open

Open

Closed

4

Open

Open

Open

Open

Open

Closed

Open

Open

5

Open

Open

Open

Open

Closed

Open

Open

Open

10

Open

Open

Open

Closed

Open

Open

Open

Open

11

Open

Open

Closed

Open

Open

Open

Open

Open

12

Open

Closed

Open

Open

Open

Open

Open

Open

15

Closed

Open

Open

Open

Open

Open

Open

Open

CONFIGURATION TYPE SELECTION

Setting

JP2/I

»

Software configured

Closed

Hardware configured

Open

BOOT ROM CONFIGURATION

Setting

JP1/G

»

Disabled

Open

Enabled

Closed

ROM ADDRESS

Address

JP1/D

JP1/E

JP1/F

»

C800h

Open

Closed

Open

C000h

Open

Open

Open

C400h

Closed

Open

Open

CC00h

Closed

Closed

Open

D000h

Open

Open

Closed

D400h

Closed

Open

Closed

D800h

Open

Closed

Closed

DC00h

Closed

Closed

Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On

Network connection is good

LED1

Yellow

Off

Network connection is broken

LED2

Green

Blinking

Data is being transmitted/received

LED2

Green

Off

Data is not being transmitted/received

MISCELLANEOUS NOTES

Note: Bar code on back of card reads, "2000RCnnnnnnnnn"
