IMC NETWORK CORPORATION
BNC PIC
|
NIC Type |
Ethernet repeater |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
RG58A/U 50ohm coaxial |
|
Boot ROM |
Not Available |
|

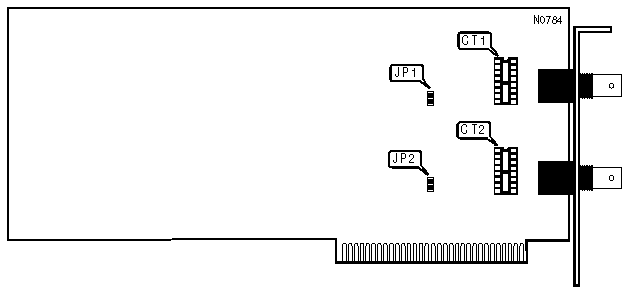

CONNECTIONS | |
|
Purpose |
Location |
|
Port 1 cabling option resistor kit socket(CORK) |
CT1 |
|
Port 2 cabling option resistor kit socket(CORK) |
CT2 |
|
Note: CORK kits are available from the manufacturer in 50, 75, or 93 Ohm sizes. | |
|
PRIMARY PORT TERMINATION POWER | ||
|
Setting |
JP1 | |
| » |
On-board termination power enabled |
Closed |
|
On-board termination power disabled |
Open | |
|
ALTERNATE PORT TERMINATION POWER | ||
|
Setting |
JP2 | |
| » |
On-board termination power enabled |
Closed |
|
On-board termination power disabled |
Open | |
