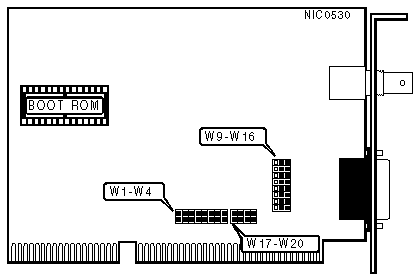

LANCAST
16-BIT 10BASE2 BOARD
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
BOOT ROM | ||
|
Setting |
W1 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
BOOT ROM & I/O BASE ADDRESS | ||||
|
Boot ROM Address |
I/O Address |
W2 |
W3 | |
| » |
C8000h |
300 - 31Fh |
Closed |
Closed |
|
CC000h |
320 - 33Fh |
Open |
Closed | |
|
D0000h |
340 - 35Fh |
Closed |
Open | |
|
D4000h |
360 - 37Fh |
Open |
Open | |
|
WAIT STATE | ||
|
Setting |
W4 | |
| » |
0 wait states |
Open |
|
1 wait state |
Closed | |
|
INTERRUPT REQUEST | |||||||||
|
IRQ |
W5 |
W6 |
W7 |
W8 |
W17 |
W18 |
W19 |
W20 | |
|
2/9 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
| » |
3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
11 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
12 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
CABLE TYPE | ||
|
Type |
W9 - W16 | |
| » |
RG-58A/U 50ohm coaxial |
Pins 1 & 2 closed |
|
AUI transceiver via DB-15 port |
Pins 2 & 3 closed | |
