LANTANA TECHNOLOGY, INC.
TAMARIX/1
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial DIX transceiver via DB-15 port |
|
Boot ROM |
Available |
|
DMA CHANNEL |
|||||
|
Channel |
JP4A |
JP4B |
JP4C |
JP4D |
JP4E |
|
Disabled |
Open |
Open |
Open |
Open |
Open |
|
DMA1 |
Closed |
Open |
Open |
Closed |
Open |
|
DMA3 |
Open |
Closed |
Open |
Open |
Closed |
|
Note: JP4G is always open and should never be closed. |
|||||
|
INTERRUPT REQUEST |
||||
|
IRQ |
JP4F |
JP4G |
JP4H |
JP4I |
|
2 |
Open |
Open |
Open |
Closed |
|
3 |
Open |
Open |
Closed |
Open |
|
4 |
Open |
Closed |
Open |
Open |
|
5 |
Closed |
Open |
Open |
Open |
|
CABLE TYPE |
||
|
Type |
JP5 |
|
|
» |
RG-58A/U 50ohm coaxial |
Option 1 |
|
|
DIX transceiver via DB-15 port |
Option 2 |
|

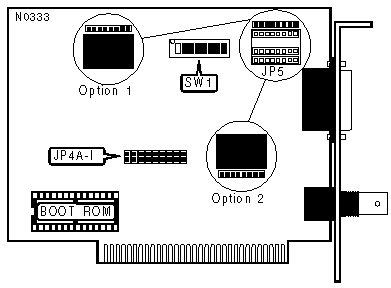

Note: See the diagram for Option 1 & 2 settings. |
||
|
BOOT ROM ADDRESS |
||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
C8000h |
On |
On |
Off |
On |
|
CA000h |
Off |
On |
Off |
On |
|
CC000h |
On |
Off |
Off |
On |
|
CE000h |
Off |
Off |
Off |
On |
|
D0000h |
On |
On |
On |
Off |
|
D2000h |
Off |
On |
On |
Off |
|
D4000h |
On |
Off |
On |
Off |
|
D6000h |
Off |
Off |
On |
Off |
|
D8000h |
On |
On |
Off |
Off |
|
DA000h |
Off |
On |
Off |
Off |
|
DC000h |
On |
Off |
Off |
Off |
|
DE000h |
Off |
Off |
Off |
Off |
|
I/O BASE ADDRESS |
|||||
|
Address |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
|
|
200h |
On |
On |
On |
On |
|
|
220h |
On |
On |
On |
Off |
|
|
240h |
On |
On |
Off |
On |
|
|
260h |
On |
On |
Off |
Off |
|
|
280h |
On |
Off |
On |
On |
|
|
2A0h |
On |
Off |
On |
Off |
|
|
2C0h |
On |
Off |
Off |
On |
|
|
2E0h |
On |
Off |
Off |
Off |
|
» |
300h |
Off |
On |
On |
On |
|
|
320h |
Off |
On |
On |
Off |
|
|
340h |
Off |
On |
Off |
On |
|
|
360h |
Off |
On |
Off |
Off |
|
|
380h |
Off |
Off |
On |
On |
|
|
3A0h |
Off |
Off |
On |
Off |
|
|
3C0h |
Off |
Off |
Off |
On |
|
|
3E0h |
Off |
Off |
Off |
Off |
