NIC Type

Ethernet

Network Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus, Star

Wiring Type

RG-58A/U 50ohm coaxial (location unidentified)

Boot ROM

Available (location unidentified)

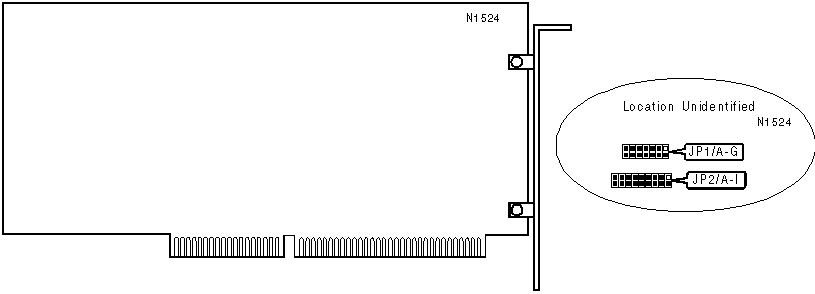

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Boot ROM Disabled

JP1/A

Open

Boot ROM Enabled

JP1/A

Closed

»

Software configuration - Jumperless mode

JP2/A

Closed

Hardware configuration - Jumpered mode

JP2/A

Open

BASE I/O ADDRESS SELECTION

Address

JP1/E

JP1/F

JP1/G

200h

Closed

Open

Open

220h

Closed

Open

Closed

240h

Closed

Closed

Open

260h

Closed

Closed

Closed

300h

Open

Open

Open

320h

Open

Open

Closed

340h

Open

Closed

Open

360h

Open

Closed

Closed

INTERRUPT SELECTION

IRQ

JP2/B

JP2/C

JP2/D

JP2/E

JP2/F

JP2/G

JP2/H

JP2/I

2

Closed

Open

Open

Open

Open

Open

Open

Open

»

3

Open

Closed

Open

Open

Open

Open

Open

Open

4

Open

Open

Closed

Open

Open

Open

Open

Open

5

Open

Open

Open

Closed

Open

Open

Open

Open

10

Open

Open

Open

Open

Closed

Open

Open

Open

11

Open

Open

Open

Open

Open

Closed

Open

Open

12

Open

Open

Open

Open

Open

Open

Closed

Open

15

Open

Open

Open

Open

Open

Open

Open

Closed

Note: When setting IRQ leave JP2/A open.

BOOT ROM SIZE SELECTION

Size

JP1/B

JP1/C

JP1/D

C0000h

Open

Open

Open

C4000h

Open

Open

Closed

»

C8000h

Open

Closed

Open

CC000h

Open

Closed

Closed

D0000h

Closed

Open

Open

D4000h

Closed

Open

Closed

D8000h

Closed

Closed

Open

DC000h

Closed

Closed

Closed

Note: When setting Boot ROM Address make sure jumper JP1/A is closed.

TECHNICAL NOTE

Note: The location of the 2 LEDs for network activity is unidentified.
