GVC TECHNOLOGIES, INC.
8-BIT 10BASE2
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial Rg-58C/A |
|
Boot ROM |
Available |
|

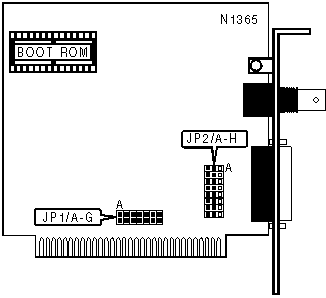

BOOT ROM CONFIGURATION |
||
|
Setting |
JP1/A |
|
|
Enabled |
Closed |
|
|
» |
Disabled |
Open |
|
ADDRESS SELECTION |
|||
|
Base I/O Address |
Boot ROM Address |
JP1/B |
JP1/C |
|
300h |
C800h |
Closed |
Closed |
|
320h |
CC00h |
Open |
Closed |
|
340h |
D000h |
Closed |
Open |
|
360h |
D400h |
Open |
Open |
|
INTERRUPT SELECTION |
|||||
|
IRQ |
JP1/D |
JP1/E |
JP1/F |
JP1/G |
|
|
» |
3 |
Closed |
Open |
Open |
Open |
|
4 |
Open |
Closed |
Open |
Open |
|
|
5 |
Open |
Open |
Closed |
Open |
|
|
CABLE TYPE SELECTION |
|||||||||
|
Cable Type |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E |
JP2/F |
JP2/G |
JP2/H |
|
|
AUI Transceiver via DB-15 port |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
|
» |
RG-58A/U 50ohm coaxial |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
|||||||||
