EAGLE TECHNOLOGY
NE2000T
|

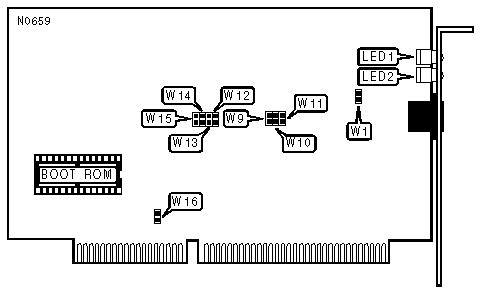

NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available |
|
BOOT ROM | ||
|
Setting |
W11 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
COMPATIBILITY MODE | ||
|
Setting |
W16 | |
| » |
Normal ISA bus timing |
Closed |
|
Alternate ISA bus timing |
Open | |
|
Note:Alternate ISA bus timing is used if the host computer is not 100% ISA bus compatible (such as the Compaq 286, IBM PC 30-286 or systems that use the C & T chip set. | ||
|
I/O BASE ADDRESS | |||
|
Address |
W9 |
W10 | |
| » |
300h |
Closed |
Closed |
|
320h |
Open |
Closed | |
|
340h |
Closed |
Open | |
|
360h |
Open |
Open | |
|
INTERRUPT REQUEST | |||||
|
IRQ |
W12 |
W13 |
W14 |
W15 | |
| » |
3 |
Open |
Closed |
Open |
Open |
|
2 |
Closed |
Open |
Open |
Open | |
|
4 |
Open |
Open |
Closed |
Open | |
|
5 |
Open |
Open |
Open |
Closed | |
|
TOPOLOGY TYPE SELECT | ||
|
Type |
W1 | |
| » |
Linear Bus |
Open |
|
Star |
Closed | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
Off |
Network connection is good |
|
LED1 |
Green |
On |
Network connection is broken |
|
LED2 |
Red |
On |
Polarity is correct |
|
LED2 |
Red |
Off |
Polarity is reversed |
