NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear Bus
Wiring Type	RG58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

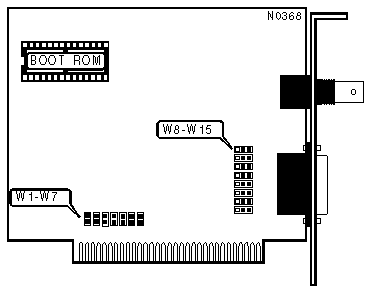

BOOT ROM
Setting		W1
»	Disabled	Open
	Enabled	Closed

I/O BASE ADDRESS AND BOOT ROM ADDRESS
I/O Address		Boot ROM Address	W2	W3
»	300-31Fh	C8000-CBFFFh	Closed	Closed
	320-33Fh	CC000-CFFFFh	Open	Closed
	340-35Fh	D0000-D3FFFh	Closed	Open
	360-37Fh	D4000-D7FFFh	Open	Open

INTERRUPT REQUEST
IRQ		W4	W5	W6	W7
	2	Open	Open	Open	Closed
»	3	Closed	Open	Open	Open
	4	Open	Closed	Open	Open
	5	Open	Open	Closed	Open

CABLE TYPE
Type		W8 - W15
»	RG58A/U 50ohm coaxial	Pins 1 & 2 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed
