GATEWAY COMMUNICATIONS, INC.
G/ETHERNET 32EB ADAPTER
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-bit EISA |
|
Topology |
Star Linear Bus |
|
Wiring Type |
Shielded/Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

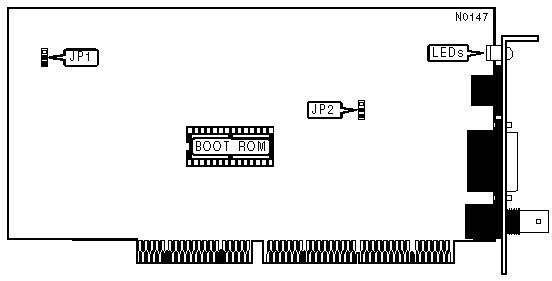

COMPATIBILITY MODE | ||
|
Setting |
JP1 | |
| » |
Compatibility off |
Pins 2 & 3 Closed |
|
Compatibility on |
Pins 1 & 2 Closed | |
|
Note: Turn off compatibility.If one of the following problems persist after checking all other possibilities;
| ||
|
SYSTEM SPEED | ||
|
Setting |
JP2 | |
| » |
System speed 50MHz or faster |
Pins 1 & 2 Closed |
|
System speed slower then 50MHz |
Pins 2 & 3 Closed | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
1 |
Yellow |
On |
Data is being transmitted |
|
1 |
Green |
On |
Data is being received |
|
2 |
Red |
On |
Adapter is continually sending random data |
|
2 |
Green |
On |
Network is connection good |
|
MISCELLANEOUS NOTES |
|
Different drivers must be used for the National & the Fujitsu chipset cards & are not interchangeable. Fujitsu drivers may be used for either 8 or 16 bit Fujitsu cards. While the National chipset cards require a different driver for an 8 or 16 bit card. |
