Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial, AUI transceiver via DB15 port
Data Bus	None

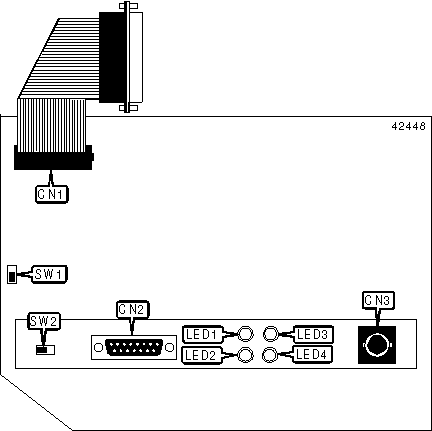

CONNECTIONS
Function	Label	Function	Label
24 wire ribbon connector to control board	CN1	BNC connector	CN3
AUI connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
	SQE enabled	SW1	On
»	SQE disabled	SW1	Off

CABLE TYPE SELECTION
Type	SW2
AUI transceiver via DB-15 port	Off
RG-58A/U 50ohm coaxial	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	Blinking	Data is being received
LED1	Yellow	Off	Data is not being received
LED2	Green	On	Power is on
LED2	Green	Off	Power is off
LED3	Green	Blinking	Data is being transmitted
LED3	Green	Off	Data is not being transmitted
LED4	Red	Blinking	Collision detected on network
LED4	Red	Off	No collision detected on network
