Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear Bus
Wiring Type	Unshielded twisted pair (RJ-45), RG-58A/U 50ohm coaxial
Data Bus	32-bit PCI

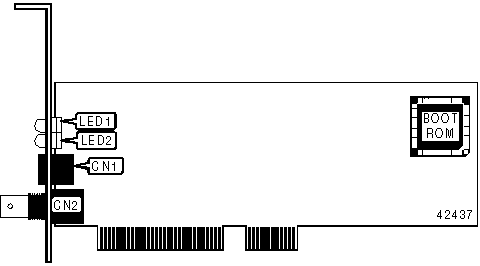

CONNECTIONS
Function	Label	Function	Label
UTP connector (RJ-45)	CN1	BNC connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Network connection is good
LED1	Unidentified	Off	Network connection is broken
LED2	Unidentified	On	Data is being transmitted or received
LED2	Unidentified	Off	Data is not being transmitted or received
