Card Type	Network interface card
NIC Type	Token Ring
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	4Mbps, 16Mbps
Topology	Ring
Wiring Type	Shielded twisted pair (DB-9), Unshielded twisted pair (RJ-45)
Data Bus	32-bit PCI

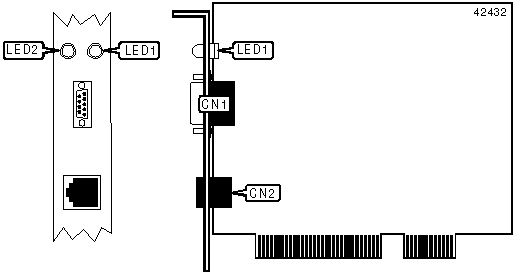

CONNECTIONS
Function	Label	Function	Label
STP connector (DB-9)	CN1	UTP connector (RJ-45)	CN2

DIAGNOSTIC LED(S)
LED1 (Green)	LED2 (Amber)	Condition
Blinking	Blinking	Waiting for initialization
Off	Off	Computer is off or initialization is in progress
Off	Blinking	Self-diagnostic tests ok
Off	On	Open and operating correctly
Note: The orientation of the amber and green LEDs may be reversed on some versions.
