Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star, linear bus
Wiring Type	RJ-45 Unshielded twisted pair RG-58 A/U 50ohm coaxial
Data Bus	32-bit PCI

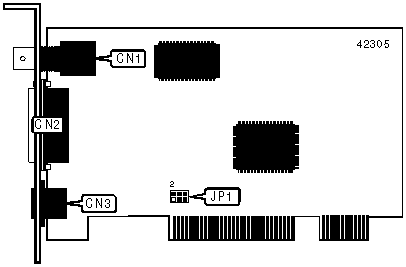

CONNECTIONS
Function	Label	Function	Label
RG-58 A/U 50ohm coaxial	CN1	RJ-45 UTP connector	CN3
AUI transceiver via DB-15	CN2

PCI INTERRUPT SELECTION
Setting		JP1
»	INTA	Pins 1 & 3 closed
	INTB	Pins 2 & 4 closed
	INTC	Pins 4 & 6 closed
	INTD	Pins 3 & 5 closed
