Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	4K
Boot ROM	Unidentified
Network Transfer Rate	100Mbps
Topology	Linear Bus, Star
Wiring Type	Fiber optic cable
Data Bus	32-bit PCI

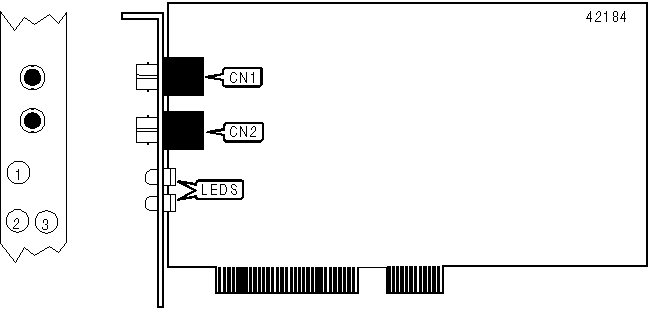

CONNECTIONS
Function	Label	Function	Label
Fiber optic connector - transmit (ST)	CN1	Fiber optic connector - receive (ST)	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Network connection is good
LED1	Unidentified	Off	Network connection is broken
LED2	Unidentified	On	Data is being transmitted
LED2	Unidentified	Off	Data is not being transmitted
LED3	Unidentified	On	Data is being received
LED3	Unidentified	Off	Data is not being received
