Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	16KB
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Data Bus	16-bit ISA

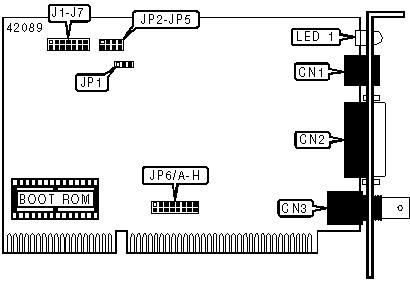

CONNECTIONS
Function	Label	Function	Label
RJ-45 connector	CN1	RG-58A/U connector	CN3
AUI transceiver via DB-15 port	CN2

SOFTWARE/JUMPER SELECT
Setting		JP2	JP3	JP4
»	Card is software configurable	Open	Open	Closed
	Card is jumper configurable	Closed	Closed	Open
Note: If card is set to "software configurable", jumper cab on IRQ block should be removed.

INTERRUPT SELECTION (JP6)
IRQ		A	B	C	D	E	F	G	H
	2	Closed	Open	Open	Open	Open	Open	Open	Open
»	3	Open	Closed	Open	Open	Open	Open	Open	Open
	4	Open	Open	Closed	Open	Open	Open	Open	Open
	5	Open	Open	Open	Closed	Open	Open	Open	Open
	10	Open	Open	Open	Open	Closed	Open	Open	Open
	11	Open	Open	Open	Open	Open	Closed	Open	Open
	12	Open	Open	Open	Open	Open	Open	Closed	Open
	15	Open	Open	Open	Open	Open	Open	Open	Closed

ROM ADDRESS SELECTION
Address		J1	J2	J3	J4
»	Disabled	Open	Open	Open	N/A
	C0000H	Open	Open	Closed	Open
	C4000H	Open	Open	Closed	Closed
	C8000H	Open	Closed	Open	Open
	CC000H	Open	Closed	Open	Closed
	D0000H	Open	Closed	Closed	Open
	D4000H	Open	Closed	Closed	Closed
	D8000H	Closed	Open	Open	Open
	DC000H	Closed	Open	Open	Closed

BASE I/O ADDRESS SELECTION
Setting		J5	J6	J7
	240h	Open	Closed	Open
	280h	Open	Closed	Closed
	2C0h	Closed	Open	Open
	320h	Closed	Open	Closed
»	330h	Open	Open	Open
	340h	Closed	Closed	Open
	360h	Closed	Closed	Closed

AT BUS COMPATIBILITY SELECT (JP1)
Setting		A	B	C
»	System compatible w/IBM PC/AT bus	Open	Closed	Closed
	System not compatible w/IBM PC/AT bus	Closed	Closed	Open

CABLE TYPE SELECTION
Type		JP5
»	BNC/RJ-45 (auto select) enabled	Open
	AUI enabled	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	UTP link is good
LED1	Green	Off	UTP link is broken
