DAYNA COMMUNICATIONS, INC.
DAYNAPORT E/Z
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Data Bus |
Serial |
|

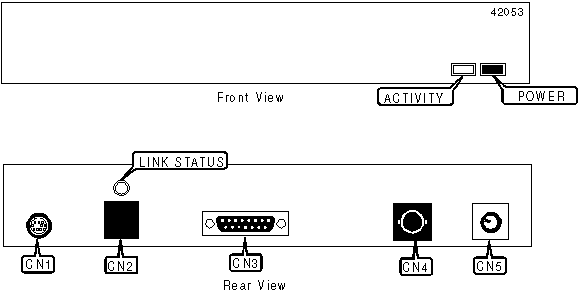

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
LocalTalk serial port |
CN1 |
BNC connector |
CN4 |
|
RJ-45 connector |
CN2 |
DC Power connector |
CN5 |
|
AUI transceiver via DB-15 |
CN3 | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
Power |
Green |
On |
Power is on |
|
Power |
Green |
Off |
Power is off |
|
Activity |
Yellow |
On |
Data is being transmitted/received |
|
Activity |
Yellow |
Off |
Data is not being transmitted/received |
|
Link status |
Unidentified |
On |
UTP link is good |
|
Link status |
Unidentified |
Off |
UTP link is broken |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Never connect or disconnect the SCSI/Link when it is powered on. |
