NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	32-bit EISA
Topology:	Linear Bus
Wiring Type	AUI transceiver via DB-15 port RG58A/U 50ohm coaxial or RG62/U 93ohm coaxial
Boot ROM	Available

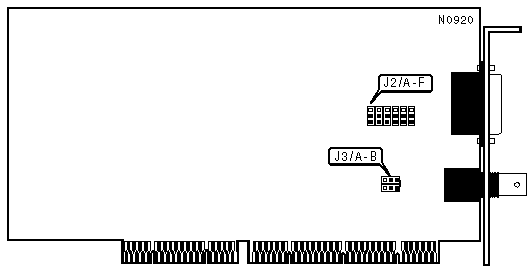

WIRING TYPE SELECT - J2
Setting	Jumper A	jumper B	Jumper C	Jumper D	Jumper E	Jumper F
BNC	1 & 2 closed	1 & 2 closed	1 & 2 closed	1 & 2 closed	1 & 2 closed	1 & 2 closed
AUI	2 & 3 closed	2 & 3 closed	2 & 3 closed	2 & 3 closed	2 & 3 closed	2 & 3 closed

BNC TYPE
Setting		J3/jumper A	J3/jumper B
»	RG58A/U 50ohm coaxial	Pins 2 & 3 closed	Pins 2 &3 closed
	RG62A/U 93ohm coaxial	Pins 1 & 2 closed	Pins 1 & 2 closed
