NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	32-bit LC Processor Direct Slot
Topology	Linear Bus Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Not available

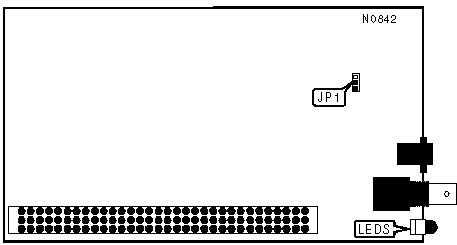

CABLE TYPE SELECTION
Cable Type	JP1
Unshielded twisted pair	pins 2 & 3 closed
RG-58A/U 50ohm coaxial	pins 1 & 2 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is broken
LED2	Green	On	Data is being transmitted or received
LED2	Green	Off	Data is not being transmitted or received
