NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	Unshielded twisted pair RG58A/U 50ohm coaxial AUI transceiver via DB15
Boot ROM	Available

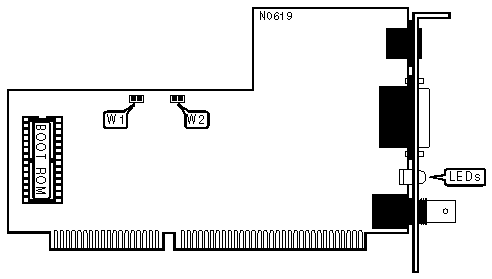

HARD STRAP CONFIGURATION
Base I/O Address	W1	W2
200h	Closed	Closed
280h	Closed	Open
EISA	Open	Closed
Software Configured	Open	Open

DIAGNOSTIC LEDS
LED	Color	Mode	Status
LED1	Amber	On	Self test in progress/traffic on network
LED1	Amber	Off	No power to card/network clear
LED2	Green	On	Link integrity exists
LED2	Green	Off	Link integrity broken
