Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	External

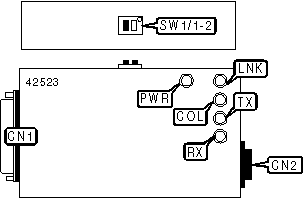

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	RJ-45 UTP connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SQE test function enabled	SW1/1	On
	SQE test function disabled	SW1/1	Off
»	Link beat enabled	SW1/2	On
	Link beat disabled	SW1/2	Off
Note: Disable link beat in networks incompatible with 10BaseT standard

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Unidentified	On	Power is on
PWR	Unidentified	Off	Power is off
RX	Unidentified	Blinking	Data is being received
RX	Unidentified	On	Heavy LAN traffic load
RX	Unidentified	Off	Data is not being received
TX	Unidentified	Blinking	Data is being transmitted
TX	Unidentified	On	Large data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
LNK	Unidentified	On	Network connection is good
LNK	Unidentified	Off	Network connection is broken
COL	Unidentified	Blinking	Collision detected on network
COL	Unidentified	Off	Collision not detected on network
COL	Unidentified	On	Possible error occurred
