Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	External

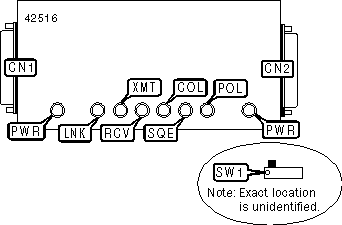

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	AUI transceiver via DB-15	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SQE test function disabled	SW1	Off
	SQE test function enabled	SW1	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Unidentified	On	One AUI has supplied power to the transceiver
PWR	Unidentified	Off	Power is off
LNK	Unidentified	On	Valid receive link is established
LNK	Unidentified	Off	Receive link connection is broken
XMT	Unidentified	On	Data is being transmitted
XMT	Unidentified	Off	Data is not being transmitted
RCV	Unidentified	On	Data is being received
RCV	Unidentified	Off	Data is not being received
COL	Unidentified	On	Collision detected on network
COL	Unidentified	Off	No collision detected on network
SQE	Unidentified	On	Signal Quality Error test function is enabled
SQE	Unidentified	Off	Signal Quality Error test function is disabled
POL	Unidentified	On	Automatic polarity reversal has not occurred
POL	Unidentified	Off	Automatic polarity reversal has occurred
