Card Type	Ethernet
Data Bus	16-bit ISA
Maximum network Rate	10Mbps
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Available

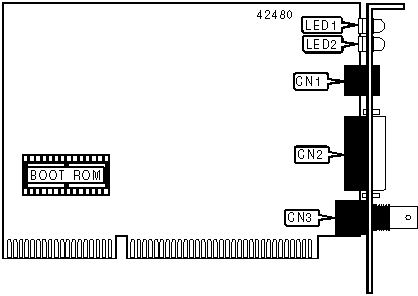

CONNECTIONS
Function	Label
Unshielded twisted pair port	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	10Base-T network connection is good
LED1	Green	Off	10Base-T network connection is broken
LED2	Unidentified	Blinking	Data is being transmitted/received
LED2	Unidentified	Off	Data is not being transmitted/received
