Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Fiber Optic cable - SMA
Data Bus	External

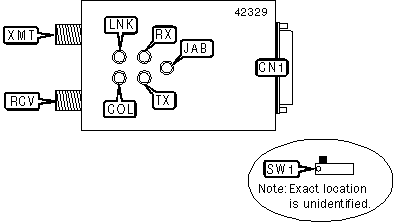

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	Fiber optic connector (SMA) - receive	RCV
Fiber optic connector (SMA) - transmit	XMT

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SQE test function disabled	SW1	Off
	SQE test function enabled	SW1	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LNK	Unidentified	On	Network connection is good
LNK	Unidentified	Off	Network connection is broken
RX	Unidentified	On	Data is being received
RX	Unidentified	Off	Data is not being received
TX	Unidentified	On	Data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
JAB	Unidentified	On	Jabber timer has expired
JAB	Unidentified	Off	Jabber timer has not expired
COL	Unidentified	On	Collision detected on network
COL	Unidentified	Off	No collision detected on network
