Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10/100Mbps
Topology	Star
Wiring Type	Unshielded Twisted Pair
Data Bus	External

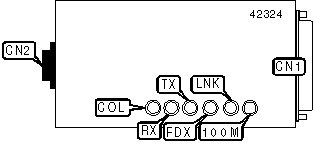

CONNECTIONS
Function	Label	Function	Label
40-pin DTE port	CN1	UTP connector (RJ-45)	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Unidentified	On	Transceiver is in 100Mbps mode
PWR	Unidentified	Off	Transceiver is in 100Mbps mode
LNK	Unidentified	On	Network connection is good
LNK	Unidentified	Off	Network connection is broken
FDX	Unidentified	On	Transceiver in full duplex mode
FDX	Unidentified	Off	Transceiver not in full duplex mode
TX	Unidentified	On	Data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
RX	Unidentified	On	Data is being received
RX	Unidentified	Off	Data is not being received
COL	Unidentified	On	Collision detected on network
COL	Unidentified	Off	No collision detected on network
