BAY NETWORKS, INC.
514
|
Device Type |
Ethernet Transceiver |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
100Mbps (200Mbps full duplex) |
|
Topology |
Star |
|
Wiring Type |
Fiber optic cable |
|
Data Bus |
External |
|

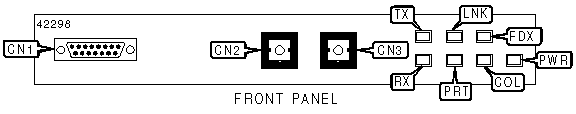

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
AUI transceiver via DB-15 |
CN1 |
Fiber optic connector (ST) |
CN3 |
|
Fiber optic connector (ST) |
CN2 |
|
|
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
TX |
Green |
On |
Data is being transmitted |
|
TX |
Green |
Off |
Data is not being transmitted |
|
RX |
Green |
On |
Data is being received |
|
RX |
Green |
Off |
Data is not being received |
|
LNK |
Green |
On |
Network connection is good |
|
LNK |
Green |
Off |
Network connection is broken |
|
PRT |
Amber |
On |
Transceiver has been disabled by network management |
|
PRT |
Amber |
Off |
Transceiver has not been disabled by network management |
|
FDX |
Green |
On |
Transceiver is in full duplex mode |
|
FDX |
Green |
Off |
Transceiver is in CSMA/CD shared media mode |
|
COL |
Amber |
On |
Collision detected on network |
|
COL |
Amber |
Off |
No collision detected on network |
|
PWR |
Green |
On |
Power is on |
|
PWR |
Green |
Off |
Power is off |
