Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Shielded twisted pair Unshielded twisted pair AUI transceiver via DB-15 port
Data Bus	MCA

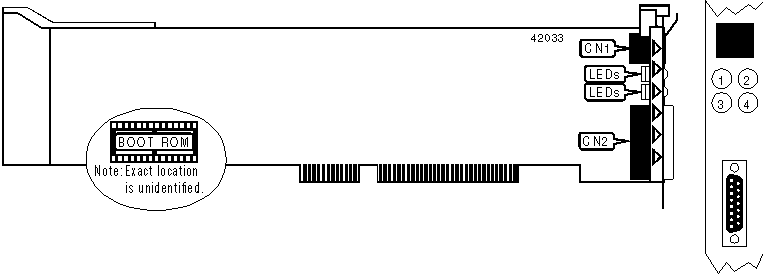

CONNECTIONS
Function	Label	Function	Label
RJ-45, Twisted pair	CN1	AUI transceiver via DB-15 port	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TX	Green	On	Data is being transmitted
TX	Green	Off	Data is not being transmitted
RX	Yellow	On	Data is being received
RX	Yellow	Off	Data is not being received
LNK	Green	On	Link integrity is good
LNK	Green	Off	Link integrity is broken
COL	Yellow	On	Collision detected on network
COL	Yellow	Off	No collision detected on network
