Card Type	Network Interface Card
NIC Type	Ethernet
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Data Bus	16-bit ISA

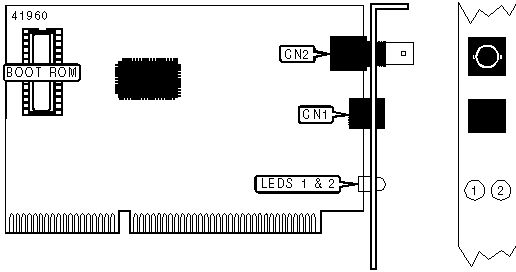

CONNECTIONS
Function	Label	Function	Label
UTP connector	CN1	RG-58A/U connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Data is being received
LED1	Green	Off	Data is not being received
LED2	Red	On	Data is being transmitted
LED2	Red	Off	Data is not being transmitted
