Card Type	Ethernet
Chip Set	Unidentified
Data Bus	NuBus
Maximum Network Rate	10Mbps
Topology	Linear Bus
Wiring Type	AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Not available

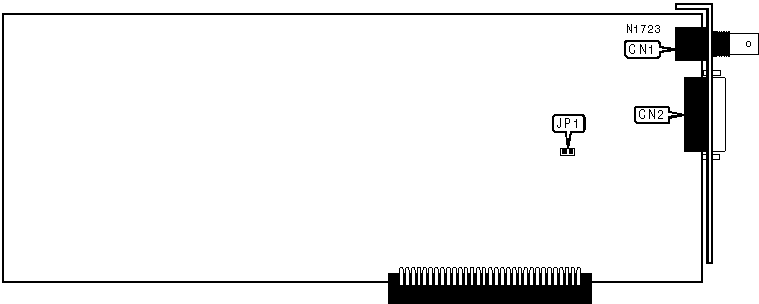

CONNECTIONS
Function	Label	Function	Label
RG-58A/U 50ohm coaxial	CN1	AUI transceiver via DB-15 port	CN2

CABLE TYPE
Setting	JP1
Auto-detect	Open
AUI transceiver via DB-15 port	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	Blinking	Traffic detected on network
LED1	Yellow	Off	Traffic not detected on network
LED2	Green	On	Network connection is good
LED2	Green	Off	Network connection is broken
Note: Exact location of LEDs is unidentified.
