NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	PCMCIA Type II
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Not available

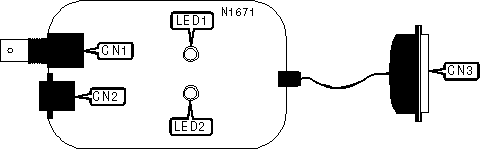

CONNECTIONS
Function	Label	Function	Label
RG-58A/U 50ohm coaxial port	CN1	15-pin flat connector	CN3
Unshielded twisted pair port	CN2

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Data is being transmitted/received
LED1	Off	Data is not being transmitted/received
LED2	On	10Bas-T network connection is good
LED2	Off	10Base-T network connection is broken
