ASANTE TECHNOLOGY, INC.
ASANTENIC-PCI
|
Card Type |
Ethernet |
|
Data Bus |
32-bit PCI |
|
Maximum Network Rate |
10Mbps |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Not available |
|

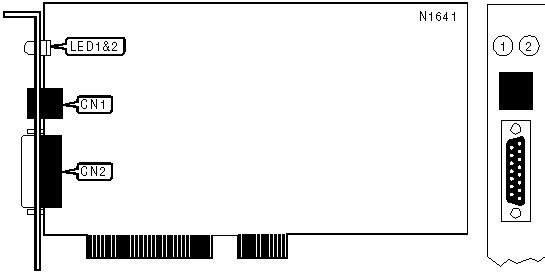

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unshielded twisted pair |
CN1 |
AUI transceiver via DB-15 port |
CN2 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection is good |
|
LED1 |
Green |
Off |
Network connection is broken |
|
LED2 |
Amber |
On |
Card is transmitting |
|
LED2 |
Amber |
Off |
Card is not transmitting |
