NIC Type	Ethernet
Network Transfer Rate	10/100Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

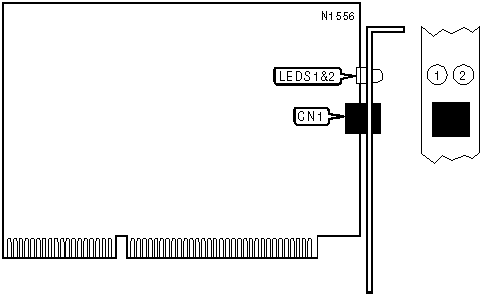

CONNECTIONS
Function	Label
Unshielded twisted pair port (100VG-AnyLAN)	CN1

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Network connection is good
LED1	Off	Network connection is broken
LED2	On	Data is being transmitted/received
LED2	Off	Data is not being transmitted/received
