NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial
Boot ROM	Available

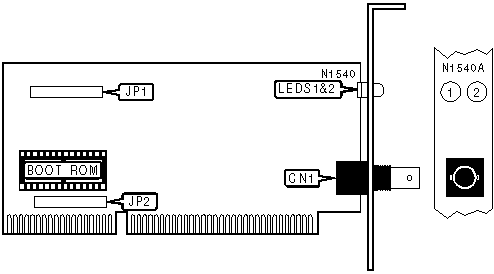

CONNECTIONS
Function	Label
RG-58A/U 50ohm coaxial port	CN1

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Network connection is good
LED1	Off	Network connection is broken
LED2	On	Data is being transmitted/received
LED2	Off	Data is not being transmitted/received
Note: The exact locations of LED1 and LED2 are unidentified.

MISCELLANEOUS TECHNICAL NOTES

Note: The purpose of JP1 and JP2 are unidentified.
