ASANTE TECHNOLOGIES, INC.
MACCON+ 30I ETHERNET CARD
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-bit SE30 PDS slot |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

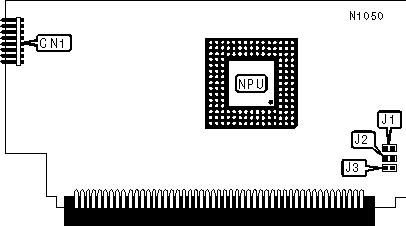

CONNECTIONS | |
|
Purpose |
Function |
|
Connector card |
CN1 |
|
NPU |
Motorola 68882 |
|
SHARED RAM SIZE CONFIGURATION | |
|
Size |
J2 |
|
16KB |
Off |
|
64KB |
On |
|
BOOT ROM TYPE | ||
|
Type |
J1 |
J3 |
|
16 pin |
N/A |
Closed |
|
28 pin 27128 |
Open |
Open |
|
28 pin 27256 |
Closed |
Open |
|

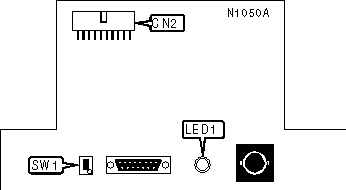

CONNECTIONS | |
|
Purpose |
Location |
|
Controller card connector |
CN2 |
|
CABLE TYPE SELECTION | |
|
Cable Type |
SW1 |
|
RG-58A/U 50ohm coaxial |
Off |
|
AUI Transceiver via DB-15 port |
On |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Network activity detected |
|
LED1 |
Off |
Network activity not detected |
|
CONNECTIONS | |
|
Purpose |
Function |
|
Controller card connector |
CN3 |
|

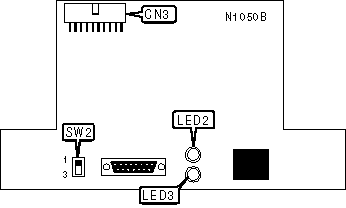

CABLE TYPE SELECTION | |
|
Cable Type |
SW2 |
|
Unshielded twisted pair, link enabled |
position 1 |
|
Unshielded twisted pair, link disabled |
position 2 |
|
AUI Transceiver via DB-15 port |
position 3 |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED2 |
On |
Network activity detected |
|
LED2 |
Off |
Network activity not detected |
|
LED3 |
On |
Link status OK |
|
LED3 |
Off |
Link status broken |
