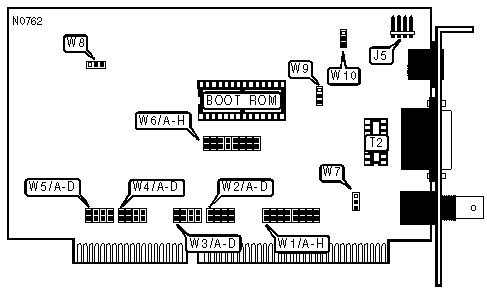

ARTISOFT, INC.
AE-3
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial Unshielded twisted pair |
|
Boot ROM |
Available |
|
ADAPTER COMPATIBILITY MODE | |||
|
Mode |
W5/A |
W5/B | |
| » |
Artisoft |
Open |
Closed |
|
Novell NE2000 |
Closed |
Open | |
|
CABLE LENGTH | ||
|
Length |
W7 | |
| » |
185M |
Pins 2 & 3 closed |
|
300M |
Pins 1 & 2 closed | |
|
CABLE TYPE | |||
|
Type |
W9 |
W10 | |
| » |
Thin Ethernet |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
Thick Ethernet |
Pins 1 & 2 closed |
Pins 2 & 3 closed | |
|
Unshielded twisted pair |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
DATA BUS SIZE | |||
|
Size |
W5/C |
W5/D | |
| » |
16-bit |
Open |
Closed |
|
8-bit |
Closed |
Open | |
|
DMA CONFIGURATION | ||||||||
|
DMA |
W2/A |
W2/B |
W2/C |
W2/D |
W3/A |
W3/B |
W3/C |
W3/D |
|
1 |
Closed |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
3 |
Open |
Closed |
Open |
Open |
Open |
Closed |
Open |
Open |
|
5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Closed |
Open |
|
7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Closed |
|
INTERRUPT SELECT | |||||||||
|
IRQ |
W1/A |
W1/B |
W1/C |
W1/D |
W1/E |
W1/F |
W1/G |
W1/H | |
| » |
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
IRQ2 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ6 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
I/O ADDRESS SELECT | |||||
|
Address |
W4/A |
W4/B |
W4/C |
W4/D | |
| » |
300h |
Closed |
Closed |
Open |
Open |
|
320h |
Closed |
Open |
Closed |
Open | |
|
340h |
Open |
Closed |
Open |
Closed | |
|
360h |
Open |
Open |
Closed |
Closed | |
|
32K BASE MEMORY ADDRESS SELECT | ||||||||
|
Address |
W6/A |
W6/B |
W6/C |
W6/D |
W6/E |
W6/F |
W6/G |
W6/H |
|
C000h |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
C800h |
Closed |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
D000h |
Closed |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
D800h |
Closed |
Closed |
Closed |
Open |
Open |
Open |
Open |
Open |
|
E000h |
Closed |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
E800h |
Closed |
Closed |
Open |
Closed |
Open |
Open |
Open |
Open |
|
16K BASE MEMORY ADDRESS SELECT | ||||||||
|
Address |
W6/A |
W6/B |
W6/C |
W6/D |
W6/E |
W6/F |
W6/G |
W6/H |
|
C000h |
Closed |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
C400h |
Closed |
Closed |
Open |
Open |
Open |
Open |
Closed |
Open |
|
C800h |
Closed |
Open |
Closed |
Open |
Open |
Open |
Closed |
Open |
|
CC00h |
Closed |
Closed |
Closed |
Open |
Open |
Open |
Closed |
Open |
|
D000h |
Closed |
Open |
Open |
Closed |
Open |
Open |
Closed |
Open |
|
D400h |
Closed |
Closed |
Open |
Closed |
Open |
Open |
Closed |
Open |
|
D800h |
Closed |
Open |
Closed |
Closed |
Open |
Open |
Closed |
Open |
|
DC00h |
Closed |
Closed |
Closed |
Closed |
Open |
Open |
Closed |
Open |
|
E000h |
Closed |
Open |
Open |
Open |
Closed |
Open |
Closed |
Open |
|
E400H |
Closed |
Closed |
Open |
Open |
Closed |
Open |
Closed |
Open |
|
E800h |
Closed |
Open |
Closed |
Open |
Closed |
Open |
Closed |
Open |
|
EC00h |
Closed |
Closed |
Closed |
Open |
Closed |
Open |
Closed |
Open |
|
8K BASE MEMORY ADDRESS SELECT | ||||||||
|
Address |
W6/A |
W6/B |
W6/C |
W6/D |
W6/E |
W6/F |
W6/G |
W6/H |
|
C800h |
Closed |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
CC00h |
Closed |
Closed |
Open |
Open |
Open |
Closed |
Open |
Open |
|
D000h |
Closed |
Open |
Closed |
Open |
Open |
Closed |
Open |
Open |
|
D400h |
Closed |
Closed |
Closed |
Open |
Open |
Closed |
Open |
Open |
|
D800h |
Closed |
Open |
Open |
Closed |
Open |
Closed |
Open |
Open |
|
DC00h |
Closed |
Closed |
Open |
Closed |
Open |
Closed |
Open |
Open |
|
E000h |
Closed |
Open |
Closed |
Closed |
Open |
Closed |
Open |
Open |
|
STANDARD/NON-STANDARD DATA BUS | ||
|
Setting |
W8 | |
| » |
Standard |
Pins 1 & 2 closed |
|
Non-Standard |
Pins 2 & 3 closed | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Note: Jumper J5 and socket T2 are for intended for use in a mixed cable, Peer-Hub configuration. |
