ALLIED TELESYN, INC.
AT-1500FT
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Fiber optic cable Unshielded twisted pair |
|
Boot ROM |
In firmware |
|

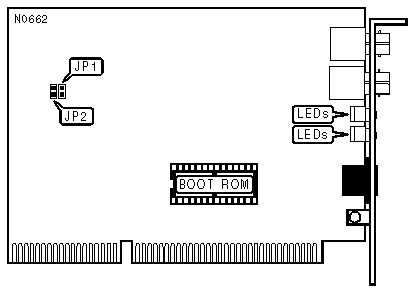

BASE I/O ADDRESS | |||
|
Address |
JP1 |
JP2 | |
| » |
300h |
Closed |
Closed |
|
320h |
Closed |
Closed | |
|
340h |
Open |
Open | |
|
360h |
Open |
Open | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
Off |
Data is not being transmitted |
|
LED1 |
Green |
On |
Data is being transmitted |
|
LED2 |
Yellow |
Off |
Data is not being received |
|
LED2 |
Yellow |
On |
Data is being received |
|
LED3 |
Green |
On |
10BaseT link integrity exists |
|
LED3 |
Green |
Off |
10BaseT link integrity broken |
|
LED4 |
Yellow |
On |
Collisions detected on network |
|
LED4 |
Yellow |
Off |
No collisions detected on network |
