NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	AUI transceiver via DB-15 RG-58A/U 50ohm coaxial Unshielded twisted pair
Boot ROM	Available

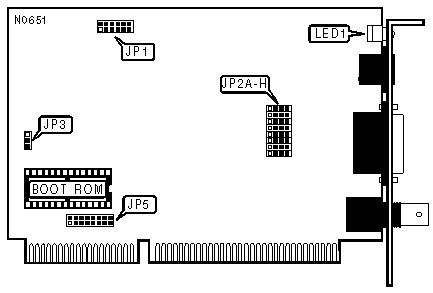

AT BUS COMPATIBILITY MODE
AT BUS Timing		JP3
»	Standard	Pins 1 & 2 closed
	Non-Standard	Pins 2 & 3 closed

BASE MEMORY AND BOOT ROM ADDRESS
Address		JP1/2	JP1/3	JP1/4
»	C8000h	Open	Closed	Open
	C0000h	Open	Open	Open
	C4000h	Open	Open	Closed
	CC000h	Open	Closed	Closed
	D0000h	Closed	Open	Open
	D4000h	Closed	Open	Closed
	D8000h	Closed	Closed	Open
	DC000h	Closed	Closed	Closed

BOOT ROM
Setting		JP1/1
»	Link intergity enabled	Open
	Link integrity disabled	Closed

CABLE TYPE
Type		JP2/A - H
»	RG58A/U 50ohm coaxial	Pins 3 & 4 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed
	Unshielded twisted pair	Pins 1 & 2 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Twisted pair connection is good
LED1	Green	Off	Twisted pair connection is broken

BASE I/O ADDRESS
Address		JP1/5	JP1/6
»	300h	Open	Open
	320h	Open	Closed
	340h	Closed	Open
	360h	Closed	Closed

INTERRUPT SETTINGS
IRQ		JP5/1	JP5/2	JP5/3	JP5/4	JP5/5	JP5/6	JP5/7	JP5/8
»	3	Open	Closed	Open	Open	Open	Open	Open	Open
	2	Closed	Open	Open	Open	Open	Open	Open	Open
	4	Open	Open	Closed	Open	Open	Open	Open	Open
	5	Open	Open	Open	Closed	Open	Open	Open	Open
	10	Open	Open	Open	Open	Closed	Open	Open	Open
	11	Open	Open	Open	Open	Open	Closed	Open	Open
	12	Open	Open	Open	Open	Open	Open	Closed	Open
	15	Open	Open	Open	Open	Open	Open	Open	Closed
