ANSEL COMMUNICATIONS, INC.
MODEL 1500
|

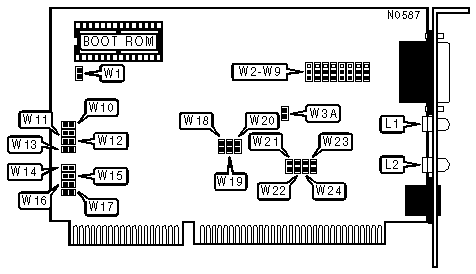

NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
Unshielded twisted pair
|
|
Boot ROM |
Available |
|
WAIT STATE CONFIGURATION | |
|
Wait State(s) |
W1 |
|
0 wait states |
Open |
|
1 wait state |
Closed |
|
CABLE TYPE | ||||||||
|
Type |
W2 |
W3 |
W4 |
W5 |
W6 |
W7 |
W8 |
W9 |
|
Unshielded twisted pair |
2 & 3 |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
|
AUI transceiver via DB-15 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
Note:Pins designated should be in the closed position. | ||||||||
|
LOOPBACK TEST MODE | ||
|
Mode |
W3A | |
| » |
Loopback test mode disabled |
Open |
|
Loopback test mode enabled |
Closed | |
|
DMA CHANNEL | ||||||||
|
Channel |
W10 |
W11 |
W12 |
W13 |
W14 |
W15 |
W16 |
W17 |
|
DMA3 |
Closed |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
DMA5 |
Open |
Closed |
Open |
Open |
Open |
Closed |
Open |
Open |
|
DMA6 |
Open |
Open |
Closed |
Open |
Open |
Open |
Closed |
Open |
|
DMA7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Closed |
|
BOOT ROM | ||
|
Setting |
W18 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
BASE I/O ADDRESS | |||
|
Address |
W19 |
W20 | |
|
300h |
Closed |
Closed | |
|
320h |
Closed |
Open | |
| » |
340h |
Open |
Closed |
|
360h |
Open |
Open | |
|
INTERRUPT SETTINGS | ||||
|
IRQ |
W21 |
W22 |
W23 |
W24 |
|
3 |
Open |
Open |
Closed |
Open |
|
4 |
Open |
Closed |
Open |
Open |
|
5 |
Closed |
Open |
Open |
Open |
|
9 |
Open |
Open |
Open |
Closed |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
L1 |
Green |
Off |
Link integrity exists |
|
L1 |
Green |
On |
Link integrity broken |
|
L2 |
Red |
On |
NIC receiving power from PC |
|
L2 |
Red |
Off |
No power from PC/NIC failure |
|
Note:L1 is only functional when link integrity is enabled. | |||
