ADDTRON TECHNOLOGY COMPANY, LTD.

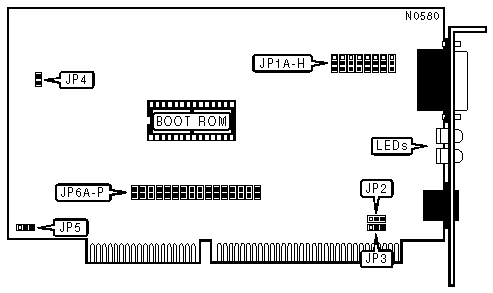

AE-220TP
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
Unshielded twisted pair
|
|
Boot ROM |
Available |
|
CABLE TYPE | |
|
Type |
JP1A-H |
|
Unshielded twisted pair |
Pins 1 & 2 closed |
|
DIX transceiver via DB-15 port |
Pins 2 & 3 closed |
|
LINK INTEGRITY | ||
|
Function |
JP2 | |
| » |
Link intergity enabled |
Pins 1 & 2 closed |
|
Link integrity disabled |
Pins 2 & 3 closed | |
|
Note: If card is used in a pre-10BaseT cabling network, disable the link integrity function. | ||
|
SEGMENT LENGTH | |
|
Length |
JP3 |
|
185 meters |
Pins 2 & 3 closed |
|
300 meters |
Pins 1 & 2 closed |
|
WAIT STATE CONFIGURATION | ||
|
Bus Speed |
JP4 | |
|
6MHz - 8MHz |
Open | |
| » |
>8MHz |
Closed |
|
ROM SIZE | |
|
Size |
JP5 |
|
16KB |
Pins 2 & 3 closed |
|
32KB |
Pins 1 & 2 closed |
|
INTERRUPT SETTINGS | |||||||
|
IRQ |
JP6A |
JP6B |
JP6C |
JP6D |
JP6E |
JP6F |
JP6G |
|
2/9 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
10 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
11 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
12 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
BASE I/O ADDRESS | |||||
|
Address |
JP6H |
JP6I |
JP6J |
JP6K | |
| » |
300h |
Open |
Open |
Open |
Closed |
|
320h |
Open |
Open |
Closed |
Open | |
|
340h |
Open |
Closed |
Open |
Open | |
|
360h |
Closed |
Open |
Open |
Open | |
|
BOOT ROM ADDRESS | ||||||
|
Address |
JP6L |
JP6M |
JP6N |
JP6O |
JP6P | |
|
C0000h |
Closed |
Closed |
Closed |
Closed |
Closed | |
|
C4000h |
Closed |
Closed |
Closed |
Closed |
Open | |
| » |
C8000h |
Closed |
Closed |
Closed |
Open |
Closed |
|
CC000h |
Closed |
Closed |
Closed |
Open |
Open | |
|
D0000h |
Closed |
Closed |
Open |
Closed |
Closed | |
|
D4000h |
Closed |
Closed |
Open |
Closed |
Open | |
|
D8000h |
Closed |
Closed |
Open |
Open |
Closed | |
|
DC000h |
Closed |
Closed |
Open |
Open |
Open | |
|
E0000h |
Closed |
Open |
Closed |
Closed |
Closed | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
Off |
Power Off/card or link failure |
|
LED1 |
Red |
Blinking |
Data is being transmitted |
|
LED1 |
Red |
On |
Data is not being transmitted |
|
LED2 |
Green |
Off |
Power Off/card or link failure |
|
LED2 |
Green |
Blinking |
Data is being received |
|
LED2 |
Green |
On |
Data is not being received/link integrity established |
|
LED3 |
Yellow |
Off |
Normal operation |
|
LED3 |
Yellow |
On |
Collision detected on network |
|
LED4 |
Orange |
Off |
Normal operation |
|
LED4 |
Orange |
On |
Card is transmitting for an extended time (jabber) |
|
Note:LED1 and LED2 only function when installed on a 10BaseT network. LED2 is also only functional when link integrity is enabled. | |||
